■特點：

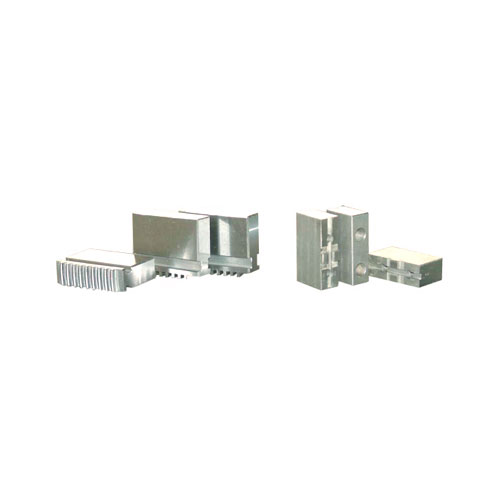

☆K11、K10、K12系列卡盤可按用戶要求提供各種軟卡爪。
☆軟卡爪包括：整體軟爪和分離軟卡爪(C型、A型)。
■Specificity:
☆A(yù)ll kinds of soft jaws can be provided as the request of customers for K11、K10、K12 series chucks.
☆Soft jaws include one-piece jaws and two-piece soft jaws (Form C、A).

產品詳情

■整體軟爪 One-piece soft jaws

型號規格 Model	RZ1180	RZ11100	RZ11125	RZ11130	RZ11160	RZ11165	RZ11190	RZ11200	RZ11240	RZ11250	RZ11315 RZ11320	RZ11325 RZ11380	RZ11400
L	32	42	56	56	70	70	72	85	105	105	130	130	130
B	12	15	16	16	18.5	18.5	22	22	27	27	36	36	36
H	32	38	45	45	54	54	57	61	69	69	91	91	91

■軟頂爪(C型) Soft top jaws (Type C)

規格 Size	L	L1	B	H	a	b	e	t	t1	c	d	d1
RZ11200C	93	46	25	50	13	11	28	7	3	39	9	15
RZ11240C	113	58	27	58	13	13	35	7	3	48	11	17
RZ11250C	113	58	27	58	13	13	35	7	3	48	11	17

規格 Size	L	L1	B	H	a	b	e	t	t1	c	d	d1
RZ11320C	137	64	36	75	28	15	44	7.5	2.8	60.5	13	20
RZ11325C	137	64	36	75	28	15	44	7.5	2.8	60.5	13	20
RZ11380C	137	64	36	75	28	15	44	7.5	2.8	60.5	13	20

■軟頂爪(A型) Soft top jaws (Type A)

規格 Size	L	L1	B	H	a	b	e	t	t1	c	d	d1
RZ11160A	74	36	25	47	12.675	7.94	19	3	4	36	11	17
RZ11200A	90	43	30	55	12.675	7.94	22.2	3	4	41	11	17
RZ11250A	110	50	36	63	19.025	12.7	27	3	4	50	13	20
RZ11315A RZ11325A	120	57	45	70	19.025	12.7	31.75	3	4	54	13	20
RZ11380A RZ11325A	135	67	45	85	19.025	12.7	38.1	6	4	66	18	26
RZ11400A	135	67	45	85	19.025	12.7	38.1	6	4	66	18	26
RZ11500A	160	80	50	90	19.025	12.7	38.1	6	4	68	22	32
RZ11630A	160	80	54	90	19.025	12.7	38.1	6	4	68	22	32
